Electric Cable Winch Puller for Underground Cable Laying 700-900KGS

Place of Origin : Jiangsu, China

Brand Name : OEM

Model Number : DSJ

Certification : ISO

MOQ : 1

Price : $1,200-1,500

Line Pulling : 700/900 KGS

Cable Diameter : 30-180mm/30-200mm

Rubber Thickness : 25mm

Pulling Speed : 6/8 m/min

Capacity : 1kN

Electric Motor : 1.1KW *2 / 1.5KW * 2

Oversize Dimension : 950*500*400 / 1020*590*400 mm

Weight : 150 / 180-200 KGS

Transmission Ratio : I=45 / I=60

Power Source : Electric

Model Type : DSJ-150 / DSJ-180

Pulling Capacity : 700/900 KGS

Motor Power : 1.1KW / 1.5KW

Machine Type : Conveyor

Usage : Pulling

Contact Now

Product Description

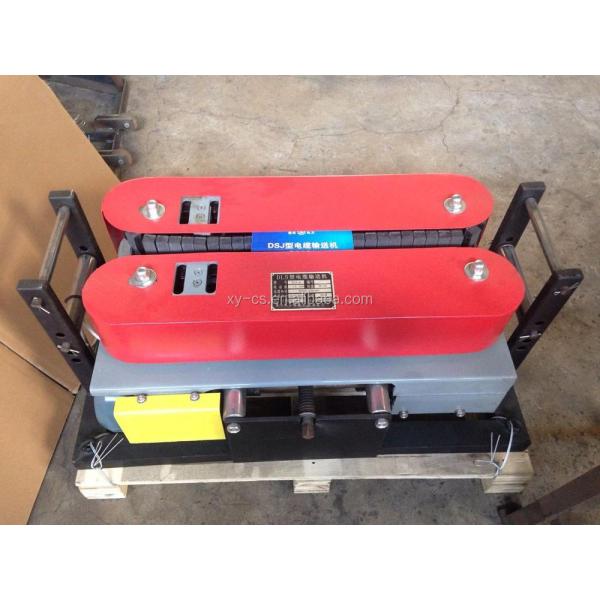

DSJ Cable Laying Equipment With Electric Engine For Underground Cable Pulling

Application

Cable Machine For Laying and Pulling Cable we manufactured, is the ideal machine of cable transmission used in power,

petroleum, chemical, industrial construction, power plant extension, substation and city network transmission cable.

It is suitable for cable trays in any form of channel, cable pipe, conveying a variety of power cable and control cable.

Features

Using this kind of this device changes the manual transmission cable. It can save a lot of labor, improve working conditions,

reduce labor intensity, improve work efficiency and ensure the safety.

Technical Data

Model Type	DSJ-150	DSJ-180
Line pulling(KGS)	700	900
Pulling Speed(m/min)	8	6
Electric motor	1.1KW *2	1.5KW * 2
Oversize dimension	950500400	1020590400
Weight(KGS)	150	180-200
Cable diameter	Φ30 - 180 mm	Φ30 - 200 mm
Transimission	I=45	I=60
Rubber sheet thickness	25mm	25mm

Packaging & Shipping

Please tell us the following information in your enquiry:

1. Electric motor ?

2. Pulling Speed(m/min) ?

3. Pulling capacity?

4. Cable diameter ?

we'll give you a good price after confirming the above info.

Welcome to contact us by phone or e-mail, if you are interesting in our products.
