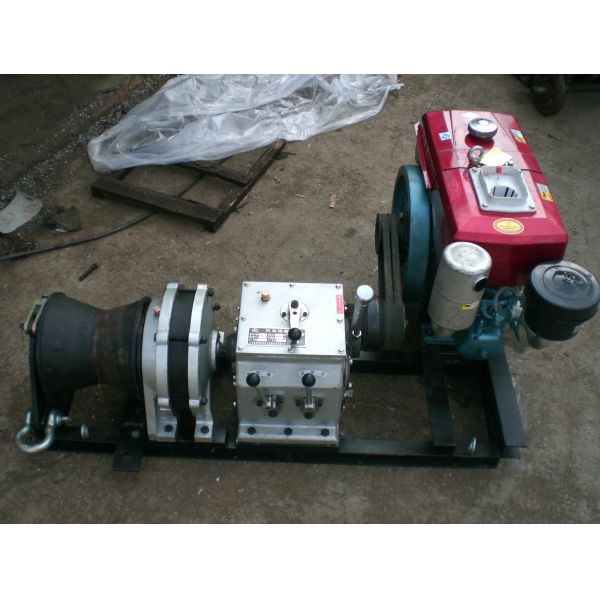

5T Diesel-Driven Capstan Winch for Line Construction | High-Speed Cable Pulling & Lifting Machine
Overview
This 5-ton diesel-driven capstan winch is engineered for overhead transmission line installation, heavy-duty cable pulling, and tower lifting operations. Equipped with a robust diesel engine and shaft-driven mechanism, it provides high-speed line pulling, stable torque, and reliable performance in remote outdoor environments. Ideal for power utility contractors, construction teams, and telecom operators, it delivers efficient and safe cable handling for demanding field projects.
Key Features
-
5-Ton Pulling Capacity
Handles heavy conductor pulling, lifting, and hauling tasks with stability.
-
Diesel Engine Powered
Reliable engine ensures strong output without dependence on external electricity.
-
Shaft-Driven Mechanism
Ensures efficient torque transmission and high-speed line operation.
-
Heavy-Duty Steel Construction
Durable frame suitable for harsh outdoor conditions.
-
High-Speed Operation
Optimized drum and capstan design for fast line pulling and lifting.
-
Portable Field Design
Equipped with lifting points or skid/wheel mounting for easy transport.
Product Advantages
-
Ideal for Remote Locations
Operates independently of power supply thanks to the diesel engine.
-
Fast and Efficient
High-speed operation reduces project time for conductor or cable installation.
-
Reliable & Durable
Shaft-driven mechanism and steel frame ensure long-term durability.
-
Low Maintenance
Simple engine and gearbox maintenance extend lifespan and reduce downtime.
-
Versatile Applications
Suitable for conductor stringing, cable pulling, tower lifting, and heavy construction hauling.
Technical Data
| Model Type | Gear | Pulling Force(KN) | Pulling Speed(m/min) | Power(KW) | Weight(KG) |
| JJM-5BC | Slow | 50 | 4.5 | 10 | 137 |
| Fast | 25 | 8.5 |
| Reverse | NO Lifting | 4 |
Applications
-
Transmission line installation
-
Overhead conductor pulling and tensioning
-
Tower and pole lifting
-
Telecom cable installation
-
Substation & power distribution projects
-
Heavy construction material hauling
-
Long-distance cable pulling and lifting
FAQ
Q1: Can this winch be used in remote areas without electricity?
A1: Yes, the diesel engine allows independent outdoor operation.
Q2: Is the line speed adjustable?
A2: Yes, multi-speed gearbox provides flexibility for different work stages.
Q3: Does the shaft-driven mechanism improve performance?
A3: Yes, it ensures efficient torque transmission and smooth high-speed operation.
Q4: What accessories are available?
A4: Optional wire ropes, pulley blocks, braking devices, and mounting options are available.
Q5: How often is maintenance required?
A5: Only routine engine servicing, lubrication, and brake inspection are needed.
