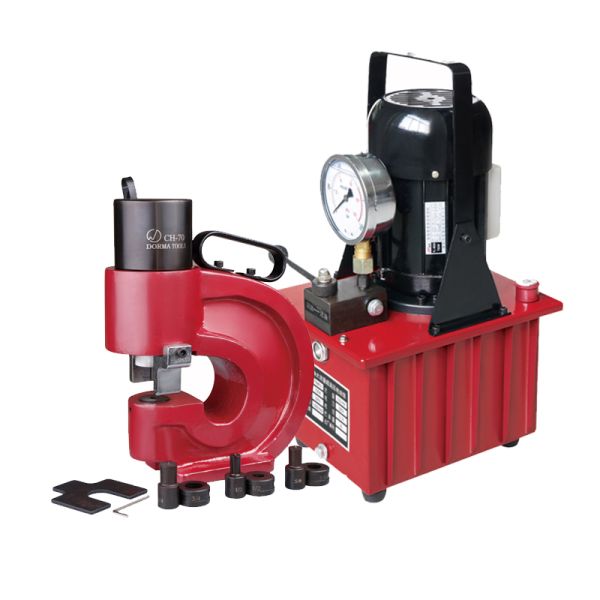

CH70 Hydraulic Punching Machine for Metal | Heavy-Duty Hole Cutting Tool
Overview
The CH70 hydraulic punching tool is designed for efficient and precise hole punching in metal sheets, plates, and structural components. Equipped with a high-pressure hydraulic system, it delivers strong punching force with minimal effort. Ideal for electrical, construction, and industrial applications, this tool ensures accurate cuts, reduces manual labor, and improves operational efficiency.
Key Features
-
High-Pressure Hydraulic System
Provides strong, consistent force for clean and precise holes.
-
Compact & Portable Design
Lightweight construction for easy handling and transportation on-site.
-
Durable Steel Construction
Heavy-duty frame ensures long service life even in tough industrial environments.
-
Versatile Punching Capacity
Suitable for various metals including steel, aluminum, and copper sheets.
-
Ergonomic Operation
Easy-to-use controls reduce fatigue during repetitive punching tasks.
Product Advantages
-
Labor-Saving & Efficient
Hydraulic operation reduces manual effort and increases productivity.
-
High Precision
Punches clean, accurate holes without deforming the material.
-
Safe & Reliable
Stable hydraulic system with safety features minimizes risk during operation.
-
Durable & Long-Lasting
Robust steel body and hydraulic components ensure extended lifespan.
-
Multi-Industry Application
Perfect for electrical panels, metal fabrication, construction, and industrial maintenance.
Specifications
| model | output | aperture | confirgured dies | max.thickness | depth of throat | weight | packing size |
| CH-60 | 30T | 3/8"-3/4" | 11.1, 14.3, 17.5,20.6mm | iron steel-8mm; copper busbar-10mm | 95mm | 21kg | 26*16*39 |
| CH-70 | 35T | 3/8"-3/4" | 11.1, 14.3, 17.5,20.6mm | iron steel010mm; copper busbar-12mm | 110mm | 37kg | 33*20*39 |
Applications
-
Electrical panel fabrication
-
Metal sheet and plate processing
-
Construction and structural component assembly
-
Industrial maintenance and workshop operations
-
HVAC, plumbing, and metal duct installations
FAQ
Q1: What types of metals can the CH70 punch?
A1: It can punch steel, aluminum, copper, and other metal sheets within its capacity range.
Q2: Is the tool portable for on-site use?
A2: Yes, its compact and lightweight design makes it easy to carry and operate on-site.
Q3: Can I change the punch size?
A3: Yes, interchangeable punch dies are available for different hole diameters.
Q4: Is it safe for repeated industrial use?
A4: Yes, the hydraulic system is designed for continuous operation with safety features.
Q5: Does it require electricity?
A5: Depending on the configuration, it can operate with a manual hydraulic pump or electric/hydraulic power unit.
