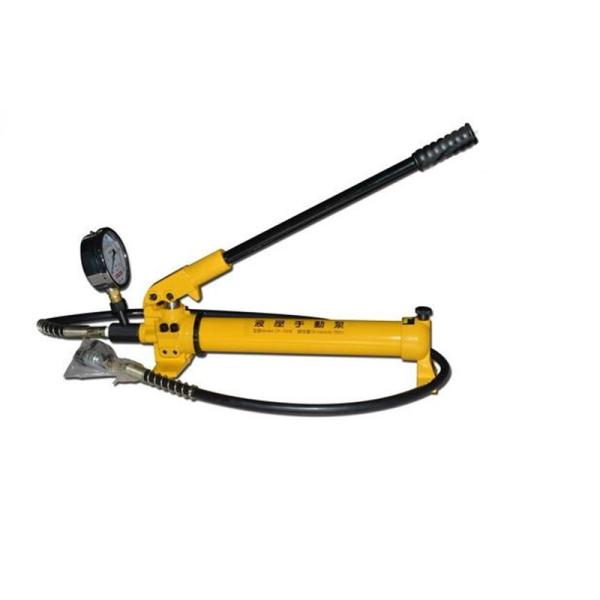

Manual pump CP-700 max pressure 70Mpa 0.94L oil Volume 1.5m hose

Name: Manual pump CP700 max pressure 70Mpa 094L oil Volume 15m hose
Brand: XINYA
Price: 1 USD

Cheap Manual pump CP-700 max pressure 70Mpa 0.94L oil Volume 1.5m hose for sale

Brand Name : XINYA

Model Number : CP-700

Certification : ISO

Place of Origin : Jiangsu,China

MOQ : 1set

Price : get latest price

Payment Terms : L/C, T/T,

Supply Ability : 1000 sets/month

Delivery Time : 7 workdays after payment

Packaging Details : Carton

Type : Manual pump CP-700

weight(kg) : 9

Max pressure（Mpa） : 700

Warranty : 1 year

Oil volume(L) : 0.94

Contact Now

Manual pump CP-700 max pressure 70Mpa 0.94L oil Volume 1.5m hose

Application

Hand Operated Hydraulic Pump is to provide power for the cutting tool, the hydraulic compressor,

punching machine and other construction machinery,which is operated in the wild field in electric power, railway, rescue, construction and other industries.

Features

1 Hydraulic pumps to drive crimping head, cutting heads and punch head.

2 Two stages speed action for rapid ram advantage.

3 Manual operation style, oil pipe fitted with quick coupling could be ordered in any length. It could be fitted with pressure meter(to be ordered).

4 Accessories including 2M high pressure hose and coupler plug P/T 3/8” thread, oil must be changed half a year.

Technical Data

Item NO.	Rated output	Oil capacity	Size	Weight	Remarks
CP-180	700kg/cn2	350CC	420260260mm	5kg	manual type
CP-390	700kg/cn2	400CC	420260260mm	5.4kg	manual type
CP-700	700kg/cn2	900CC	680185185mm	12kg	manual type
CP-700-2	700kg/cn2	2100	710185190mm	13kg	manual type

Manual pump CP-700 max pressure 70Mpa 0.94L oil Volume 1.5m hose
